810.V4A.HT Welding Curtain up to 800 °C

Welding protection curtain 810.V4A.HT

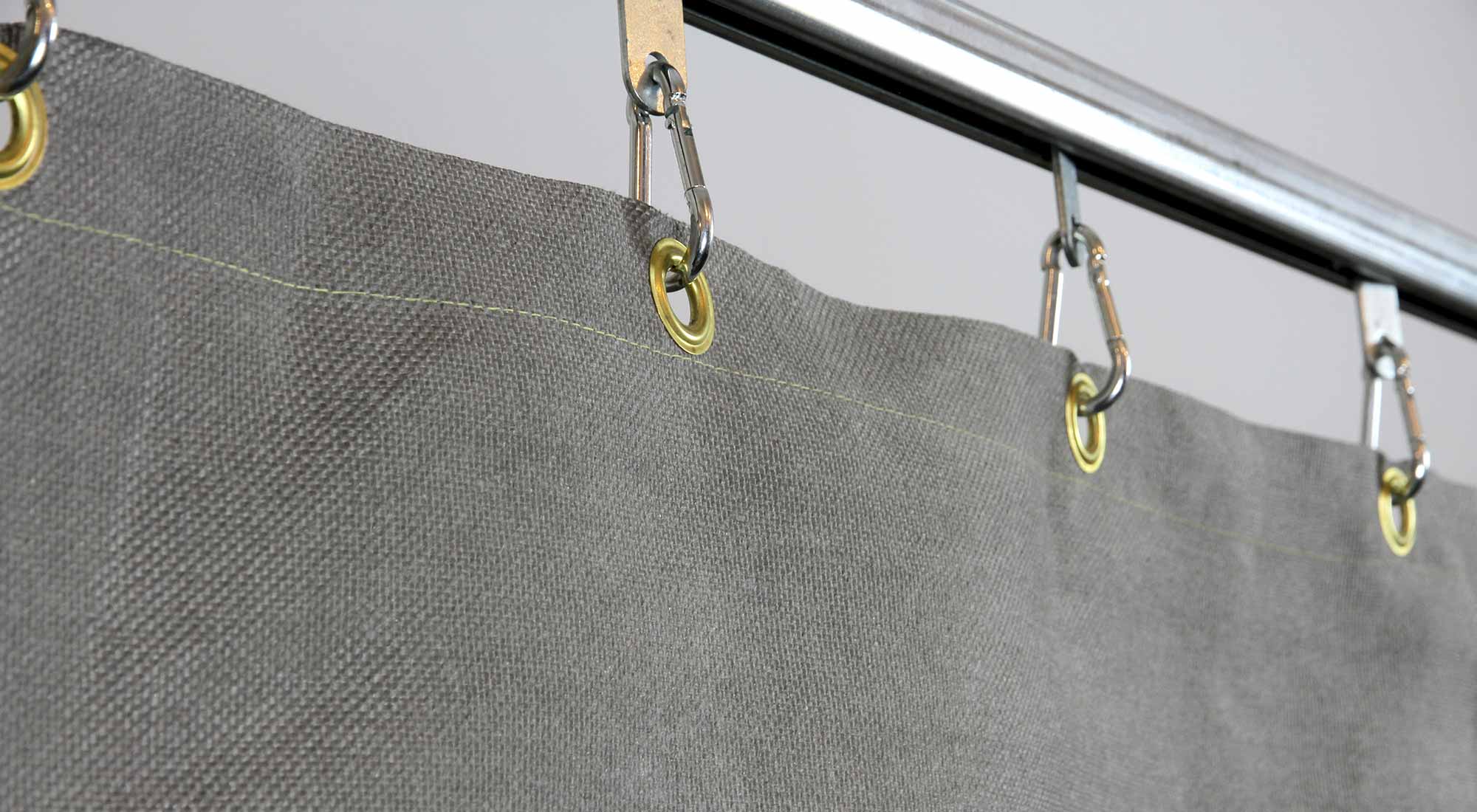

The 810.V4A.HT welding curtain is made from lightweight glass fabric with a double-sided calcium silicate HT finish and additional V4A wire reinforcement in both warp and weft directions, offering high temperature resistance up to 800 °C. The combination of V4A wire reinforcement and double-sided HT finish ensures an excellent balance of thermal resistance and high mechanical strength. The 810.V4A.HT welding curtains are ideal for applications with high mechanical demands under intensive thermal load and are characterized by increased durability.

Our welding curtains are custom-designed and configurable in numerous variations to meet specific requirements effectively.

We manufacture our welding curtains exclusively according to your specific requirements – there are no standard dimensions. However, if cut-free or low-waste dimensions are considered, there is a cost advantage. For this, we recommend adjusting the width in full-meter increments, while the height can still be selected individually.

Base Fabric	GT V4A-Glass Fabric, 730 g/m²
Coating	Calcium Silicate HT Finish on both sides
Weight incl. Coating	750 g/m²
Color	dark gray-anthracite
Temperature Resistance	up to 800 °C

Technical Characteristics

The 810.V4A.HT welding curtains are made from glass fabric reinforced with V4A wire, significantly increasing the mechanical strength and tear resistance of the curtains and enhancing their durability.
Provides excellent protection against sparks and hot welding spatter.
Welding curtains from Fingerhuth are made from durable glass fabric, ensuring long service life and stability, even under intense mechanical stress.
Welding curtains made from glass fabric are non-flammable, providing high safety even in fire-prone areas.
Welding curtains made from glass fabric are resistant to many chemicals, making them suitable for demanding environments such as refineries and chemical plants.
Welding curtains from Fingerhuth can be custom-made in various sizes and shapes, ensuring maximum flexibility in their application.

Application Examples

Welding Stations in Manufacturing and Assembly Halls: Fingerhuth welding curtains are used to clearly separate welding stations and to protect employees and machinery from sparks, arc radiation, and hot splashes.
Protection in the Automotive Industry: In automotive production, where robots and employees weld and assemble in parallel, Fingerhuth welding curtains serve as barriers between work areas. They protect adjacent production lines and improve workplace safety in factory halls.
Machine Protection in Production Facilities: Along production lines or in welding cells exposed to high thermal loads, welding curtains can be used to protect sensitive machinery and electronics from sparks and heat radiation.
Welding Areas in Metal Processing and Heavy Industry: In heavy industry, particularly in metal processing and plant construction, Fingerhuth welding curtains are used to section off large welding areas and minimize the spread of sparks and heat to adjacent areas.
Storage Areas in Production and Logistics Halls: In production facilities and logistics centers where welding or metalworking is regularly performed, welding curtains can be installed to protect nearby storage areas and reduce the risk of heat damage to materials or products.
