1020.VC2 Spatter Protection Curtain up to 1000 °C

Spatter Protection Curtain 1020.VC2

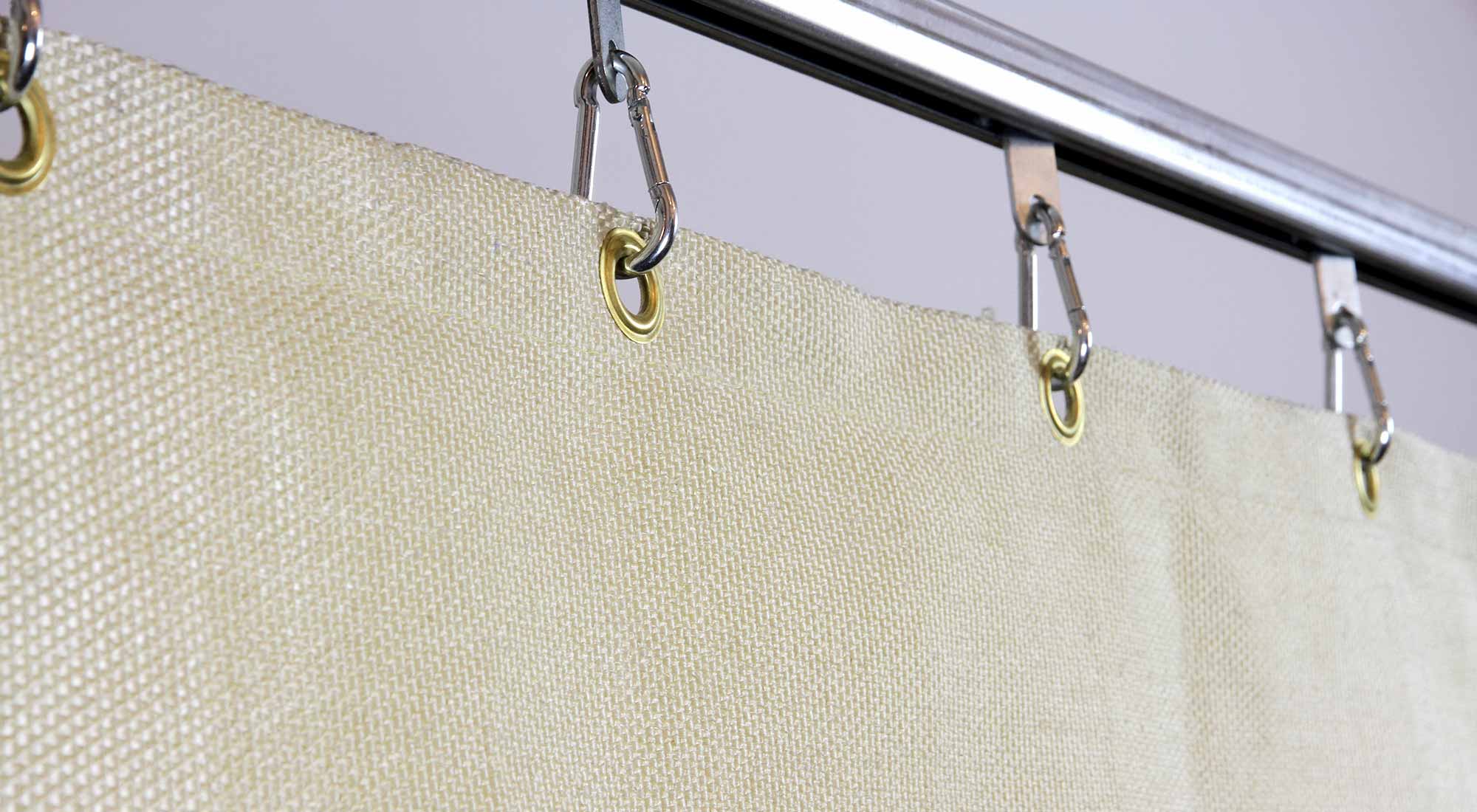

The 1020.VC2 spatter protection curtain is made from heavy glass fabric with a double-sided vermiculite coating, offering excellent thermal resistance up to 1200 °C. The double-sided coating protects the material from direct temperature exposure, increases resistance to thermal wear, and enhances mechanical strength. The 1020.VC2 spatter protection curtains are resistant to sparks, welding spatter, direct flames, and liquid metal splashes. These curtains are ideal for use in ports and shipyards, foundries, metalworking companies, and blacksmith shops where welding, grinding, soldering, and cutting are performed.

Our splash protection curtains curtains are custom-designed and configurable in numerous variations to meet specific requirements effectively.

We manufacture our welding curtains exclusively according to your specific requirements – there are no standard dimensions. However, if cut-free or low-waste dimensions are considered, there is a cost advantage. For this, we recommend adjusting the width in full-meter increments, while the height can still be selected individually.

Base Fabric	GT Glass Fabric, 1000 g/m²
Coating	Vermiculite on both sides
Weight incl. Coating	1120 g/m²
Color	beige
Temperature Resistance	1000 - 1200 °C

Technical Characteristics

The 1020.VC2 spatter protection curtains are made from heavy glass fabric with a double-sided vermiculite coating, making them particularly suitable for applications with high thermal requirements.
The double-sided vermiculite coating increases the material's temperature resistance to up to 1200 °C temporarily and provides excellent protection against sparks, hot welding spatter, and liquid metal splashes.
Splash protection curtains from Fingerhuth are made from durable glass fabric, ensuring long service life and stability, even under intense mechanical stress.
Splash protection curtains made from glass fabric are non-flammable, providing high safety even in fire-prone areas.
Splash protection curtains made from glass fabric are resistant to many chemicals, making them suitable for demanding environments such as refineries and chemical plants.
Splash protection curtains from Fingerhuth can be custom-made in various sizes and shapes, ensuring maximum flexibility in their application.

Application Examples

Welding Stations in Manufacturing and Assembly Halls: Fingerhuth welding curtains are used to clearly separate welding stations and to protect employees and machinery from sparks, arc radiation, and hot splashes.
Protection in the Automotive Industry: In automotive production, where robots and employees weld and assemble in parallel, Fingerhuth welding curtains serve as barriers between work areas. They protect adjacent production lines and improve workplace safety in factory halls.
Machine Protection in Production Facilities: Along production lines or in welding cells exposed to high thermal loads, welding curtains can be used to protect sensitive machinery and electronics from sparks and heat radiation.
Welding Areas in Metal Processing and Heavy Industry: In heavy industry, particularly in metal processing and plant construction, Fingerhuth welding curtains are used to section off large welding areas and minimize the spread of sparks and heat to adjacent areas.
Storage Areas in Production and Logistics Halls: In production facilities and logistics centers where welding or metalworking is regularly performed, welding curtains can be installed to protect nearby storage areas and reduce the risk of heat damage to materials or products.
