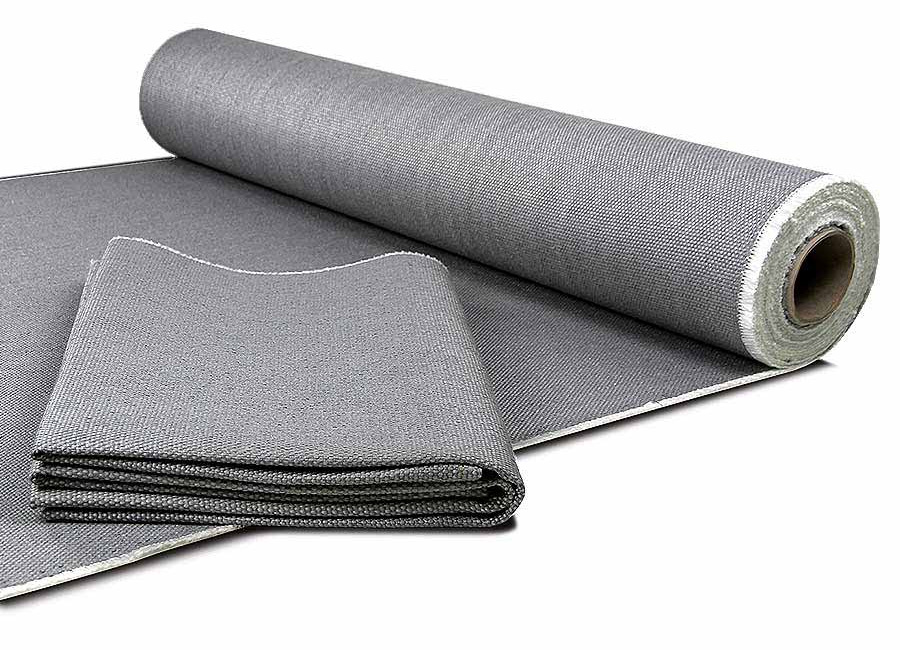

Spark Protection Tarpaulin 607.G1
The 607.G1 spark protection tarpaulin is made from a 660 g/m² glass fabric with a single-sided PU-Alufix coating. The single-sided coating makes the material resistant to high mechanical stress despite its low area weight, with a temperature resistance of up to 600 °C. Due to its light weight, the 607.G1 spark protection tarpaulin is ideal for covering or hanging over large areas. The 607.G1 spark protection tarpaulin is available in a variety of standard sizes and can also be supplied as practical roll material. Custom adaptations for specific requirements are available upon request.
Base Fabric | GF Glass fabric, 660 g/m² |
Coating | single-sided PU-Alufix (G1) |
Weight incl. Coating | 700 g/m² |
Color | aluminum grey, matte |
Temperature resistance | up to 600 °C |
Technical Characteristics
- The 607.G1 spark protection tarpaulin has a high-temperature resistance of up to 600 °C and is non-flammable.
- Good resistance to high mechanical stresses such as abrasion, tearing, and impacts.
- Good cut resistance, easy to process further with standard tools.
- Due to its low area weight, this quality is ideal for covering or hanging over large areas, such as scaffolding or factory halls.
- Our welder blankets are available in various sizes and material thicknesses to meet diverse requirements and working conditions.
- In addition to heat protection, our welder blankets also offer high resistance to chemicals, oils, and fats.
Application Examples
- Welding protection in metalworking: Welding blankets provide protection for adjacent work areas, machinery, and personnel from sparks and welding spatter. They are commonly used in the metalworking industry to prevent damage to equipment and surfaces.
- Protection of sensitive surfaces: During welding work on large metal structures or vehicles, welding blankets protect sensitive surfaces, materials, or the surrounding area from heat damage and welding spatter.
- Fire protection in the construction industry: In the construction industry, welding blankets are used to protect buildings and materials from fire hazards during welding and cutting operations. They minimize the risk of fires and thermal damage to structures.
- Protection during maintenance work: When performing maintenance on systems or machinery that requires welding, welding blankets act as shields to protect nearby equipment and electronics from sparks and extreme heat.
- Protection in the shipbuilding and offshore industry: Welding work in the shipbuilding and offshore industry requires robust safety measures. Welding blankets protect against sparks and help reduce the risk of fires on ships or platforms.
Rolls
Width | Roll length | Weight | Order Number | Price |
---|---|---|---|---|
1000 mm | 25 linm | 700 g/m² | 206070-010-250 | |
1000 mm | 50 linm | 700 g/m² | 206070-010-500 | |
1250 mm | 50 linm | 700 g/m² | 206070-012-500 | |
1500 mm | 50 linm | 700 g/m² | 206070-015-500 | |
2000 mm | 50 linm | 700 g/m² | 206070-020-500 |
Welding Blankets
Dimensions | Size | Weight | Order Number | Price |
---|---|---|---|---|
1000 x 1000 mm | 1,00 m2 | 0,70 kg | 206071-010-010 | |
1000 x 2000 mm | 2,00 m2 | 1,40 kg | 206071-010-020 | |
1000 x 3000 mm | 3,00 m2 | 2,10 kg | 206071-010-030 | |
2000 x 2000 mm | 4,00 m2 | 2,80 kg | 206071-020-020 | |
2000 x 3000 mm | 6,00 m2 | 4,20 kg | 206071-020-030 | |
2000 x 4000 mm | 8,00 m2 | 5,60 kg | 206071-020-040 | |
3000 x 3000 mm | 9,00 m2 | 6,30 kg | 206071-030-030 | |
3000 x 4000 mm | 12,00 m2 | 8,40 kg | 206071-030-040 | |
3000 x 5000 mm | 15,00 m2 | 10,50 kg | 206071-030-050 | |
4000 x 4000 mm | 16,00 m2 | 11,20 kg | 206071-040-040 | |
4000 x 5000 mm | 20,00 m2 | 14,00 kg | 206071-040-050 | |
4000 x 6000 mm | 24,00 m2 | 16,80 kg | 206071-040-060 | |
5000 x 5000 mm | 25,00 m2 | 17,50 kg | 206071-050-050 | |
5000 x 6000 mm | 30,00 m2 | 21,00 kg | 206071-050-060 | |
5000 x 7000 mm | 35,00 m2 | 24,50 kg | 206071-050-070 | |
6000 x 6000 mm | 36,00 m2 | 25,20 kg | 206071-060-060 | |
6000 x 7000 mm | 42,00 m2 | 29,40 kg | 206071-060-070 | |
6000 x 8000 mm | 48,00 m2 | 33,60 kg | 206071-060-080 |
