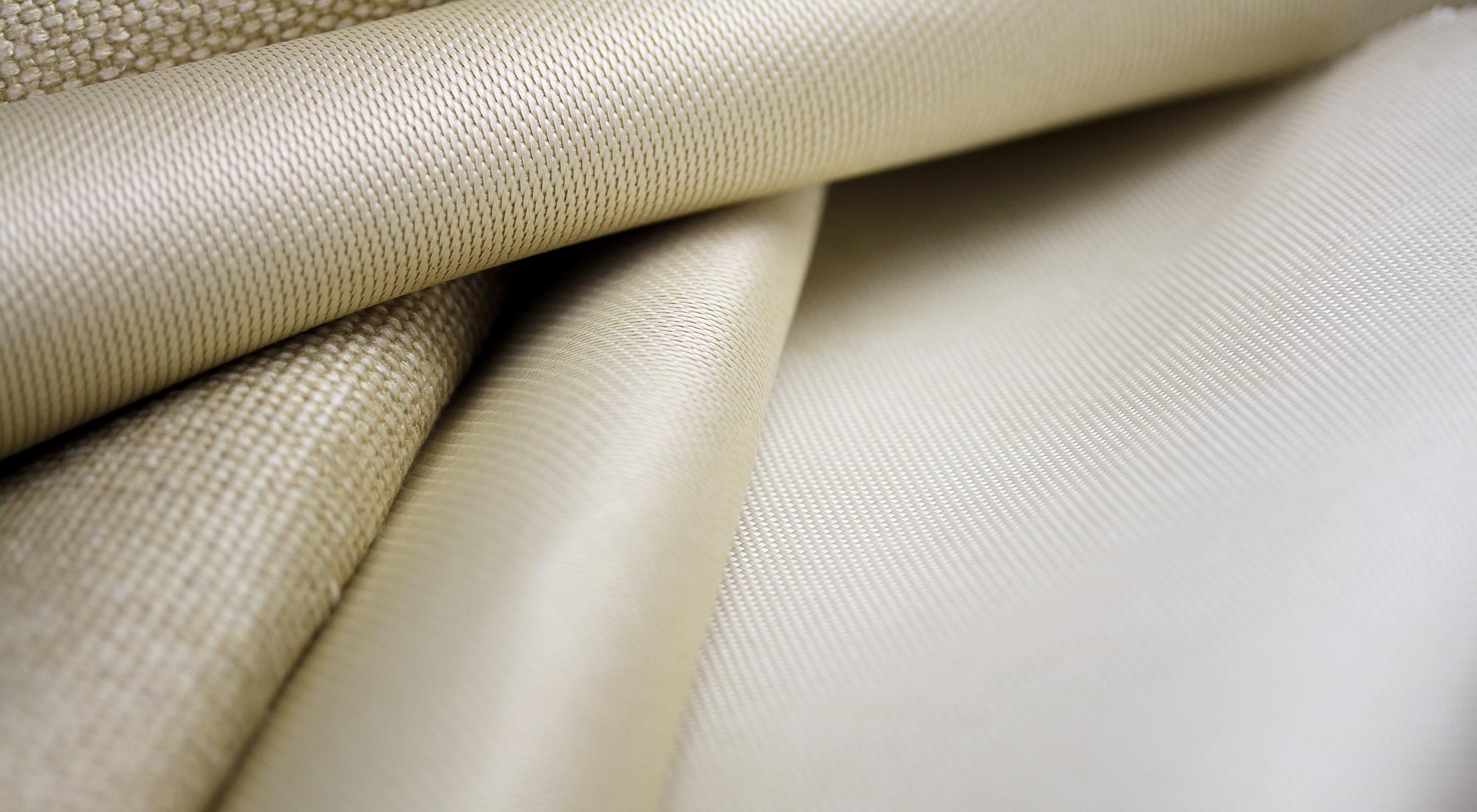

Glass Fabric with Vermiculite
Glass fabric with double-sided vermiculite coating has an increased temperature resistance of up to 1000 °C and can even withstand short-term exposure to 1200 °C. The vermiculite flakes, which are mineral-based, are applied to the glass fabric through an aqueous dispersion treatment, forming a "protective shell" that melts at high temperatures to protect the glass fabric from heat exposure—such as direct flames, welding spatter, or molten metal splashes.
| Material | Glass fabric, made from smooth (GF) or textured (GT) yarns |
| Coating | Vermiculite |
| Coating options | Coated on both sides |
| Production qualities | 200 - 1200 g/m² |
| Production widths | 1000 - 2000 mm |
| Temperature resistance (fabric) | 600 - 1000+ °C |
| Temperature resistance (coating) | 1000 - 1200 °C |
Technical Characteristics
- The vermiculite coating makes the glass fabric even more resistant to high temperatures. It withstands extreme heat exposure of up to 1000 °C without losing its structural integrity. It can even handle short-term exposure to 1200 °C and is resistant to molten metal splashes.
- Vermiculite acts as a protective barrier against flames, sparks, and welding spatter, making these materials an ideal choice for fire protection, welding, and grinding applications.
- Glass fabrics with vermiculite coating have improved mechanical strength, making them ideally suited for harsh and extreme conditions.
- Despite its robust properties, the material remains flexible and can be easily cut and processed, making it versatile for various applications.
- Also available optionally with woven V4A steel reinforcement.
Application Examples
- Glass fabric with vermiculite is often used as a protective material in the fire protection industry, as a welding curtain and welding blanket, or in areas that need to be protected from sparks and welding spatter, such as shipbuilding and plant construction.
- In the metal industry, the material protects against hot metal splashes, sparks, and intense heat, thereby improving safety in work environments.
Material data Base Fabrics
| Basisgewebe | Temperature resistance | Filament Ø | Manufacturing qualities | Width |
|---|---|---|---|---|
| E-Glass | 600 °C | ≥ 6 μm | 200 - 2000 g/m² | 1000 - 2000 mm |
| HR-Glass | 800 °C | ≥ 6 μm | 240 - 1250 g/m² | 1000 - 2000 mm |
| Silica Glass | 1000+ °C | ≥ 6 μm | 460 - 1250 g/m² | 880 - 1525 mm |
